Create Custom Notebook Container Image¶
Reference: Build a custom container image
Develop the Image¶
Installing additional packages has the potential to break dependencies. I have encountered this when Jupyter packages may inadvertantly be updated to something incompatible with the ArcGIS Notebook Server scripts.
Conda Channels
The channels used by the Notebook Server are esri and defaults in that order. Although you can install packages from conda-forge, this has a high probablity of breaking the environment, especially if the package you are installing has something in the dependency chain affecting one of the Jupyter packages.
Launch Container in Interactive Mode¶
Begin by launching a container using the image downloaded and installed from Esri. This requires first getting the image ID, and then launching this container in interactive mode.
Using the image ID collected above, use this image id to launch a Docker container using this image for testing.
This will launch you into an interactive command prompt inside the running docker container.
Note
The default environment arcgispro-py3 is active in this interactive shell. If you are curious, or want confirmation, you can list the environments and see what the active environment is.
The active enviroment, in this case arcgispro-py3, has an asterix (*) next to it.
Install Additional Packages¶
Search¶
First, determine if the package you are interested in is available in the channels esri and defaults by searching using the following command. While not necessary, this makes installation a lot easier. Also, if you are looking for specific functionality available in a release of the package, this enables you to know if the release you are interested in is available.
Install¶
If the package is available, you can install the package using Conda.
If you are interested in ensuring a specific version is installed, instead of simply the most current, you can specify the version using the following syntax.
For instance, if wanting to install GeoPandas 1.1.1, use the following.
Note
If having issues with Jupyter getting broken by installing additional packages, it may help to try enforcing strict channel priority. Before doing any installs, run the following command.
This will force Conda to always prioritize the Esri channel. Typically this makes solving dependencies take significantly longer, but also has yeilded somewhat better results when Jupyter gets broken due to dependencies installed with the additional packages.
Test Jupyter Notebook¶
After installing the packages you are interested in, see if Jupyter Notebook launches without errors. The simpliest command is the following.
However, if you want to see if you can access the image from the host operating system. This makes it easy to use the hyperlink output to the console to test reaching the notebook from a browser to test if it is possible to access Jupyter from the hosting operating system.
When I was attempting to build an image with GeoPandas, unbeknownst to me, GeoPandas has a Jupyter dependency buried somewhere breaking Jupyter Notebook. A bit of searching and troubleshooting led to the solution of installing (conda install jupyter) after installing GeoPandas. Although I cannot completely explain why this works, it does emphasize how useful this interactive environment is for figuring out the right steps for creating a working container.
Containers are Ephemeral
Containers are completely ephemeral. Hence, when you are done with the container, you can type exit on the command line, and you will be returned to the command prompt in the host operating system. The container, and all the steps you have taken above, will be destroyed.
For this reason, take note of your steps to include in the Dockerfile. I copy and paste from the command window to the Dockerfile as I'm experimenting.
This also means, if you need to start over, all you have to do is exit and docker run to be in a fresh new container to try again.
Build the Custom Image¶
Get ImageID¶
From a administrator command prompt on the ArcGIS Notebook Server instance, use the following command to get the container image identifier to use in the next step.
Create Dockerfile¶
Create a custom DOCKERFILE following a similar template as below.
Note
This file should be in a new empty directory. This will make the subsequent steps much easier.
# starting point for new notebook image, the base arcgis-notebook-python-windows image
# this is discovered by typing `docker images` in an administrator command prompt
FROM arcgis-notebook-python-windows:11.3.0.51575
# use run to install and clean to reduce image size - using geopandas installed from conda-forge as an example
RUN conda install geopandas -y \
&& conda install jupyter -y \
&& conda clean
Build the Container Image¶
Build the container image by running the following command from an administrator command prompt.
Note
The structure of the command is the new name (technically the repository) and tag (in this case, version number). Since this new image built using the above dockerfile adds GeoPandas, I am giving it a representative new name, and matching the version number so it is easy to understand this modified container is the same version as the other.
Once finished, if successful, you should see a message indicating the successful build of the image such as Successfully built <imageID>.
Note
This step also installs the newly built image locally. Unless you have a multi-machine Notebook Server deployment, you can immediately register the image in ArcGIS Portal.
Finally, get the full ImageID for the newly built container image using the following command.
This will provide a list of images installed on the instance with the full image ID. Copy this full image ID to use in the next step, registering the image with ArcGIS Portal.
Register New Runtime in Notebook Server Manager¶
Get the Python Package Manifest¶
Reference: Generate a manifest file for custom and/or extended runtimes (Tech Support Article)
Use the following command to get the Python Package manifest, the list of packages installed in the new custom image. Replace the image Id and the directory path with the path to the directory you created for the Dockerfile.
$ID = docker run -d -it <IMAGE_ID> cmd; docker exec -it $ID powershell "conda list --json >> C:\arcgis\home\manifest.json"; docker cp $ID/:C:\arcgis\home\manifest.json <DIRECTORY_PATH>; docker kill $ID; docker rm -f $ID;
For instance, below I copied the full image id and am outputting the manifest file to my project directory, C:\Users\joel5174\custom-image-geopandas.
$ID = docker run -d -it 707aaa0e47038681803b0fe932adf4474c4a85b6a085175f6b655d81ac3eaac1 cmd; docker exec -it $ID powershell "conda list --json >> C:\arcgis\home\manifest.json"; docker cp $ID/:C:\arcgis\home\manifest.json C:\Users\joel5174\custom-image-geopandas; docker kill $ID; docker rm -f $ID;
After exporting, you must edit the manifest, or it will not load in the step below.
Install the Image in Notebook Server¶
Reference: Register a New Runtime in Manager
In in the ArcGIS Notebook Server Manager, after logging in, go to Notebooks > Runtimes, and click on Register Runtime.

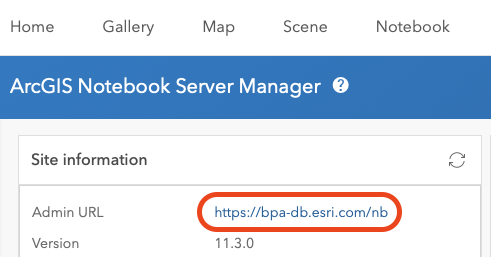

Locating the Notebook Server Manager URL
If you do not know (or want to look up) the ArcGIS Notebook Server URL (https://servername.domain.com/arcgis/admin), you can easily access this through the ArcGIS Portal by going to Notebooks > Manage > Notebook server. The URL is a hyperlink in the top left side of this page.

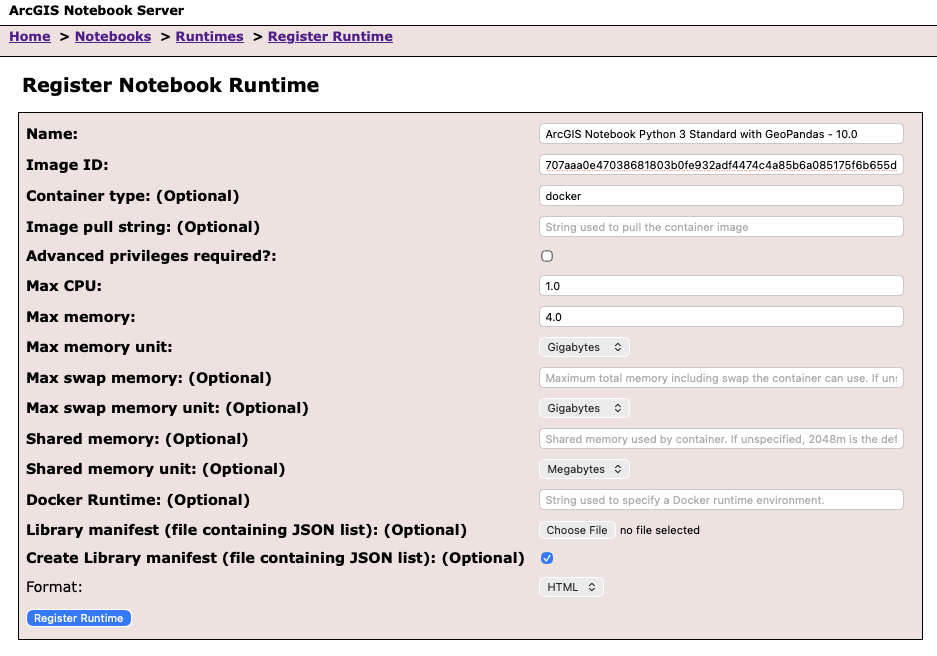

In the Register Notebook Runtime form, the most important fields are Name, Advanced Privileges Required, Image ID and Create Library Manifest. Name is the name displayed when selecting the runtime in the user interface, in Portal, so this needs to be something humans will understand.
Advanced Privileges Required means if the Advanced Notebook Runtime is needed. The Advanced Notebook runtime includes the ArcGIS arcpy Python library. Hence, if your image requires needing access to ArcPy, select this. If not, leave it unchecked.
Image ID, this is the value copied from the last step, the full image ID copied when you finished building the new image on Notebook server from the Dockerfile.
Finally, ensure Create Library Manifest is selected (checked). This introspectively builds a list of Python Packages and versions. This list is accessible from the Portal for users to understand what is avaialbe when deciding which runtime to use.
Note
The other settings are well explained in the official documentation. The ones discussed above are just the ones to look at when getting started quickly.

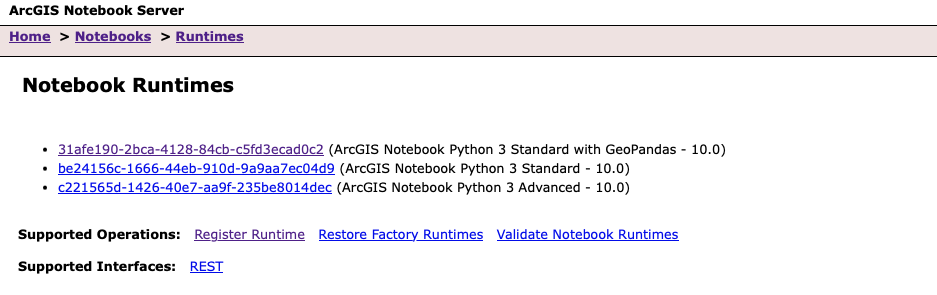

If successful, the new runtime will now be in the list of available runtimes.
Test the Notebook Runtime¶

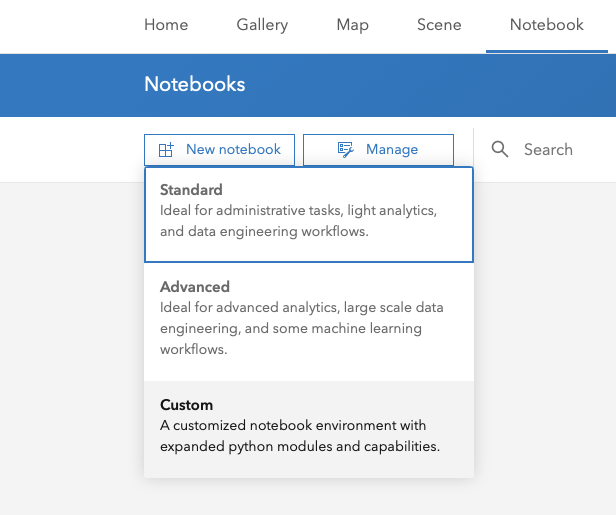

Now, it is time to test the newly installed runtime. Start by going to the ArcGIS Portal and selecting Notebooks from the top menu. In the Notebooks page, when clicking on New Notebook, you should have a new option available, Custom. Click on Custom to open the dialog to select a custom runtime.

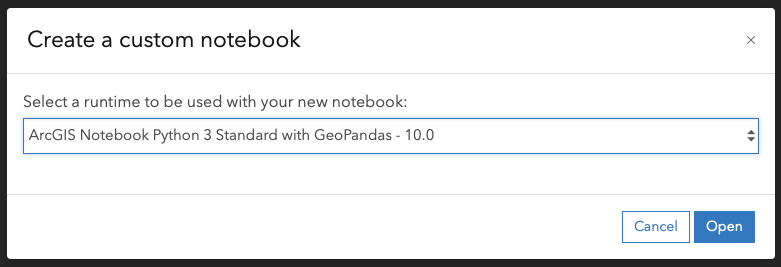

In the custom notebook dialog, you should now see the name for the newly installed runtime. Select the name of the new runtime in this dialog, and click Open. This will open up a modal dialog to select a custom runtime.
This should open a new notebook you can start using with the added packages.
